How to Judge Evaporator Capacity Matching in an H-Type Condenser 402CD

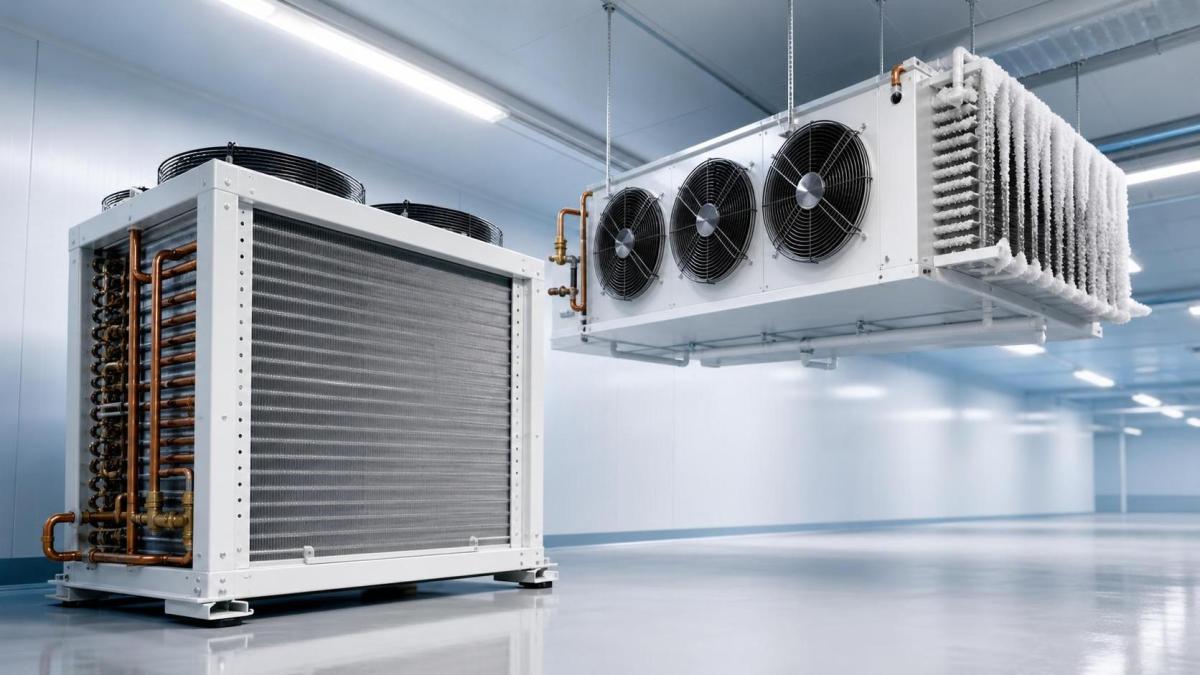

Start with the evaporator’s net duty, not the nameplate headline

When checking capacity matching for an H-Type Condenser 402CD, the first mistake I usually see is comparing the condenser model to the evaporator’s biggest published number and stopping there. That is not enough. What matters is whether the evaporator can deliver effective refrigeration capacity at the actual evaporating temperature, refrigerant, frost condition, and airflow you expect in service.

If the system load calls for 10 kW at low temperature, and the evaporator only reaches that value under a different refrigerant or a warmer suction condition, the match is already off. For technical evaluation, use the operating point first, then compare equipment.

Check these fields before you compare any capacities

• Refrigerant used in the rating table
• Room or box temperature target
• Evaporating temperature
• Whether the published value is total capacity or effective capacity
• Airflow setting and fan power condition
• Fin spacing, especially for low-temperature rooms with frosting
• Defrost method and defrost heat input

If even one of these is mixed between two data sources, your conclusion can drift far enough to cause short cycling, poor pull-down, or unnecessary compressor runtime.

Use a simple judgment path that reflects real system behavior

A practical check for H-Type Condenser 402CD matching usually works better in this order:

1. Define the room load at the design condition.
2. Identify the refrigerant and the evaporating temperature the system will actually run.
3. Read the evaporator’s effective capacity at that same point.
4. Confirm the condenser and condensing unit can reject the corresponding heat at the expected ambient condition.
5. Check airflow, throw, coil area, and defrost details to make sure the published capacity is usable in the real room layout.

That sequence keeps you from approving a match that looks fine on paper but fails once installation constraints show up.

Do not mix total capacity and effective capacity

This point deserves extra attention. In evaporator selection, total capacity includes more than the cooling effect that is actually useful for room load removal. Effective capacity is the number that better reflects what the room receives.

Take Commercial Ceiling-Mounted Evaporator 404D as an example. Under R404A/R507A at 0°C, the published total refrigeration capacity is 15.60 kW, while effective refrigeration capacity is 12.07 kW. At -18°C, total capacity is 10.64 kW and effective capacity is 9.92 kW. If an evaluator compares condenser-side demand against total capacity while the project needs usable room-side cooling, the evaporator can appear oversized even when it is only barely adequate.

In low-temperature rooms, that gap matters even more because frosting, fan operation, and defrost interruptions all eat into practical performance.

Match at the actual evaporating temperature, not at a convenient catalog point

A common shortcut is to use the nearest catalog row without checking whether the suction condition is realistic for the application. That leads to optimistic selections. An H-Type Condenser 402CD serving a medium-temperature store and the same model serving a freezer will not judge the evaporator on the same basis, even if the room sizes look close.

Air volume and throw can rescue or ruin a “correct” capacity match

Even when the numbers line up, poor air distribution can make the evaporator feel undersized. Technical evaluators should look at fan quantity, air volume, and throw against the room geometry. A unit with 14400/15430/15880 m³/h airflow and 32/33/34 m throw, for instance, may suit a long room differently from a compact box with shelving or process obstructions.

If the H-Type Condenser 402CD is being checked for a cold room where product blocks return air or creates warm pockets, capacity on the sheet will not equal capacity in the room. That is not a condenser mismatch in the strict thermodynamic sense, but it becomes a system mismatch in operation.

Look closely at frosting conditions and fin spacing

This is where many freezer evaluations go wrong. Tight fin spacing may improve compactness and initial heat transfer, but if the room runs humid or door openings are frequent, frost buildup changes the coil’s real capacity quickly. Wider fin spacing often gives a more stable result over the operating cycle.

So when you assess whether the evaporator is properly matched to an H-Type Condenser 402CD, do not ask only, “Can it hit the load on day one?” Ask, “Can it hold usable airflow between defrost cycles?” That is the better field question.

Defrost design changes the real capacity balance

For low-temperature systems, defrost is part of capacity matching, not a side note. Electric defrost power, coil layout, drain pan heating, and defrost interval all influence average daily cooling performance. An evaporator with stainless steel electric heating pipes and higher defrost power may clear frost faster, but the evaluator still needs to consider how often the room loses cooling during those periods.

If two evaporators show similar refrigeration capacity, the one with better frost management may actually be the safer match for a 402CD application that sees heavy moisture load or frequent access.

Check the piping side before approving the selection

Capacity matching is not just a coil table exercise. Interface pipe diameter, internal volume, distributor design, and refrigerant circuit arrangement affect feed stability. In the published data for the 404D model, the interface pipe diameter is 22/42 mm and tube volume is 10.67 L. Those are not capacity numbers, but they matter when you are judging whether the evaporator can be integrated without creating excessive pressure drop, liquid distribution problems, or unstable superheat control.

This is especially relevant when the H-Type Condenser 402CD is part of a larger cold storage system rather than a simple packaged setup.

A quick field-minded screening rule

Before signing off, I would screen the match this way:

• If the evaporator effective capacity at the real design point is below the room load, reject it.
• If the capacity only works at an unrealistically warm evaporating temperature, reject it.
• If airflow or throw does not fit the room layout, treat the apparent match as unreliable.
• If frost conditions are severe and fin spacing is too tight, expect performance decay and re-evaluate.
• If defrost energy and downtime are ignored, the calculated match is incomplete.

For a technical evaluation of H-Type Condenser 402CD, the safest order is: lock the design condition, compare effective evaporator capacity at that exact point, then test the result against airflow, frost, defrost, and piping realities. That sequence catches most bad matches before they become service complaints.
