I. Product Name

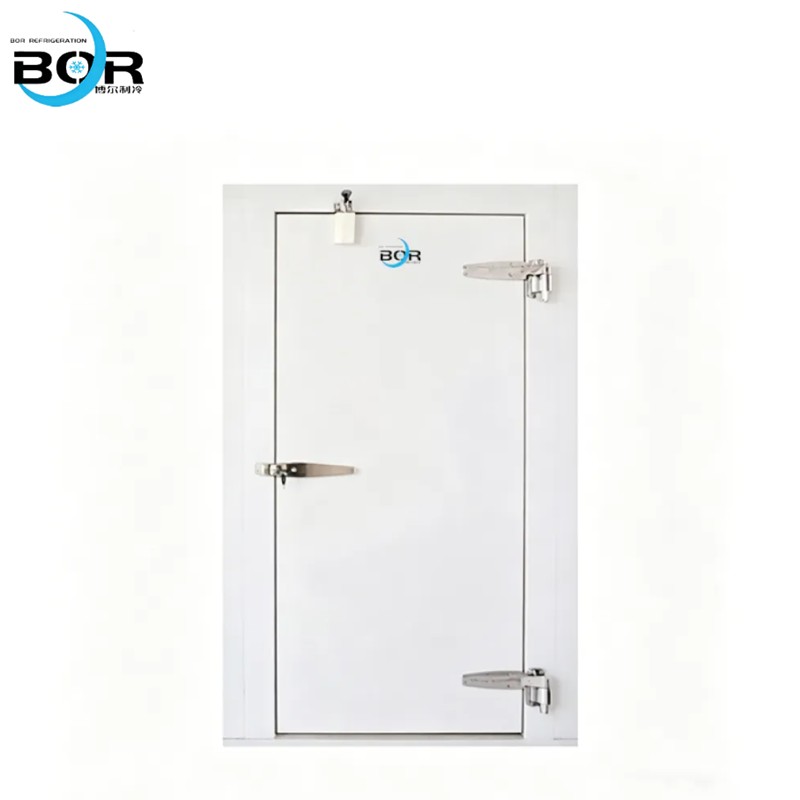

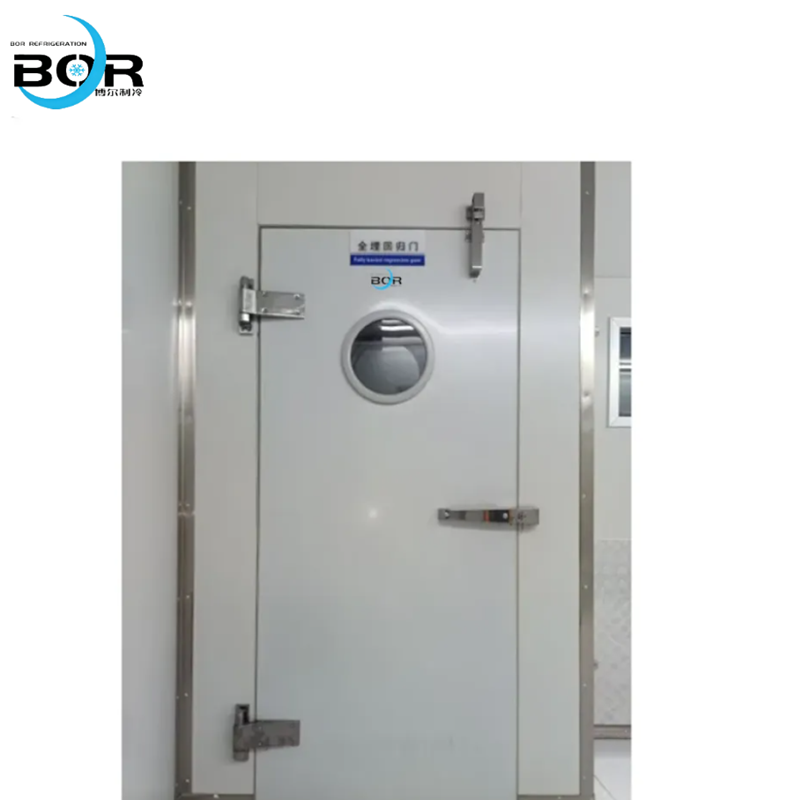

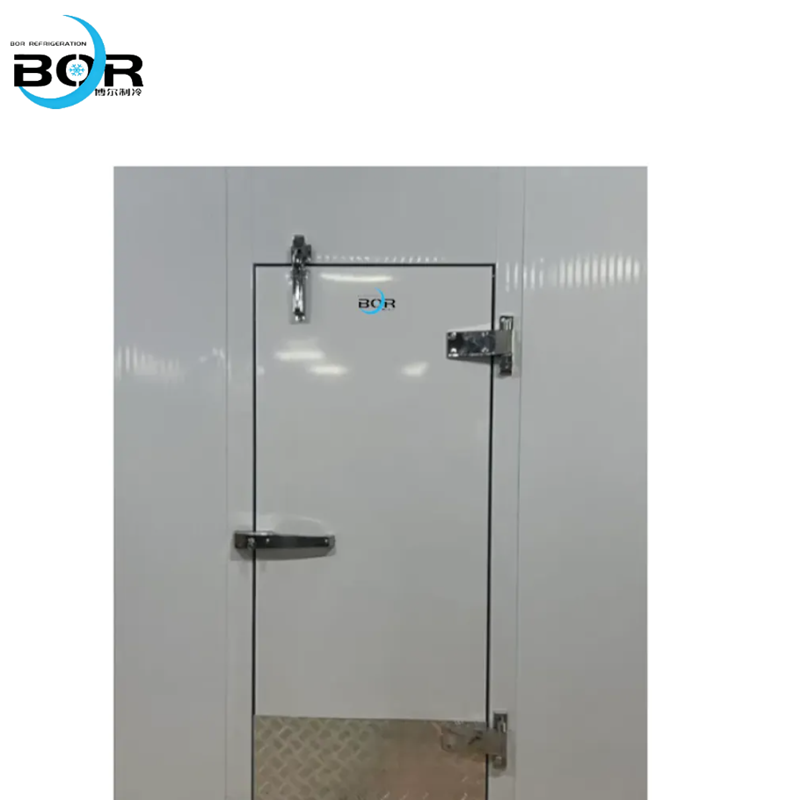

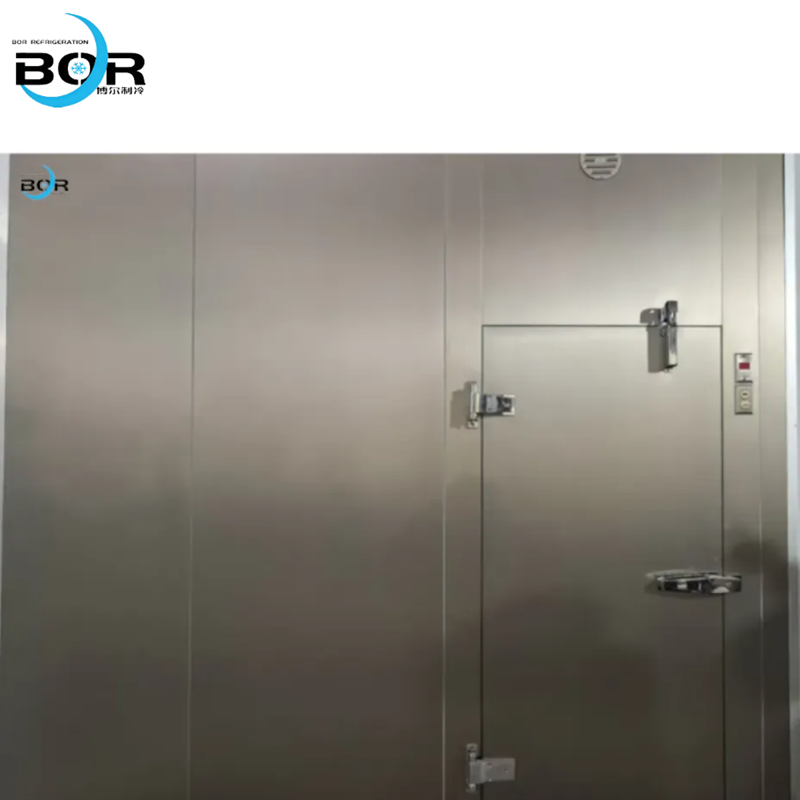

Fully concealed hinge door

II. Product Introduction

The fully embedded hinge door for cold storage (also known as a fully embedded swing door or concealed door) is a manually operated insulated door with its entire body completely embedded within the door frame. Operated by specialized embedded hinges, it offers superior sealing performance, a compact structure, and a sleek, aesthetically pleasing appearance, making it the preferred choice for medium-to-large cold storage facilities, high-precision temperature-controlled storage systems, and applications requiring stringent sealing and insulation performance.

The door panel features a high-density polyurethane (HDPU) integral foaming process, ensuring uniform foaming without voids and exceptional thermal insulation performance. Available in standard thicknesses of 100mm, 150mm, or 200mm, it can be flexibly selected according to the required temperature range of the cold storage facility.

The panel materials are customizable, typically including 304 stainless steel (corrosion-resistant, easy to clean, suitable for food-grade cold storage), color-coated steel plates (cost-effective and aesthetically pleasing), and embossed aluminum panels (lightweight, durable, and moisture/rust-resistant), catering to various cold storage environments and interior design requirements.

The dimensions of hinge doors can be customized as required. Standard door openings include 0.8×1.8 m, 1.0×2.0 m, and 1.2×2.1 m, suitable for various cold storage entrance and exit specifications. For single-door configurations, the maximum recommended width is ≤1.5 m; multi-door systems can be assembled to meet the access requirements of large-scale cold storage facilities.

III. Product Features

1. Superior sealing and insulation: The fully buried design ensures perfect alignment between the door and frame, complemented by a thick magnetic seal strip for dual sealing protection. This minimizes cold leakage, reduces energy consumption in cold storage, and maintains stable, uniform temperatures—making it ideal for demanding environments such as low-temperature freezers.

2. Compact and aesthetically pleasing design: The door body is fully integrated into the frame, featuring a smooth and minimalist appearance with no protruding parts, which saves internal space in cold storage facilities while preventing door damage from collisions. This design is ideal for cold storage applications requiring optimal space utilization and visual appeal (e.g., food processing cold storage, pharmaceutical cold storage).

3. Enhanced safety performance: Maintaining the one-touch escape design within the storage compartment, it effectively prevents the risk of personnel being accidentally locked inside; the hinges feature an embedded reinforcement design with high load-bearing capacity, ensuring smooth operation and minimal deformation or loosening during prolonged use.

4. Broad applicability: Compatible with various temperature ranges including fresh-keeping warehouses (0–8°C), refrigerated warehouses (-18°C to 0°C), and frozen warehouses (-30°C to-18°C). It is also suitable for cold storage facilities in industries requiring high sealing and cleanliness standards, such as pharmaceutical, food, and cold chain logistics sectors.

5. Durable and Easy to Maintain: Utilizes high-wear-resistant specialized hardware components with excellent oxidation and low-temperature resistance, making it suitable for the low-temperature and humid environments of cold storage facilities with a long service life. The sealing gaskets are detachable and easy to replace, requiring no complex procedures for daily cleaning, resulting in low maintenance costs.
