I. Product Name

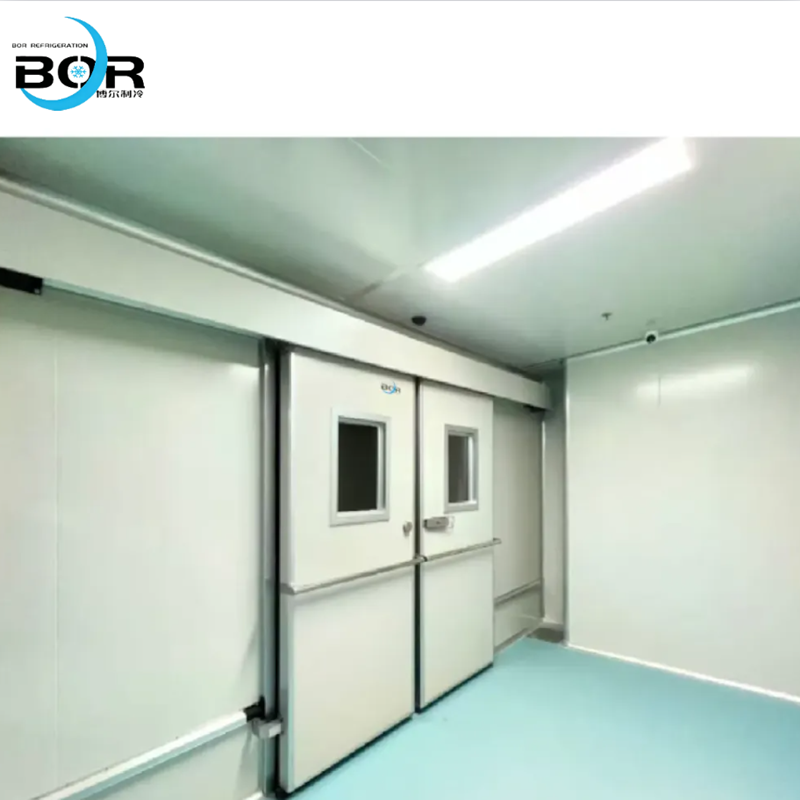

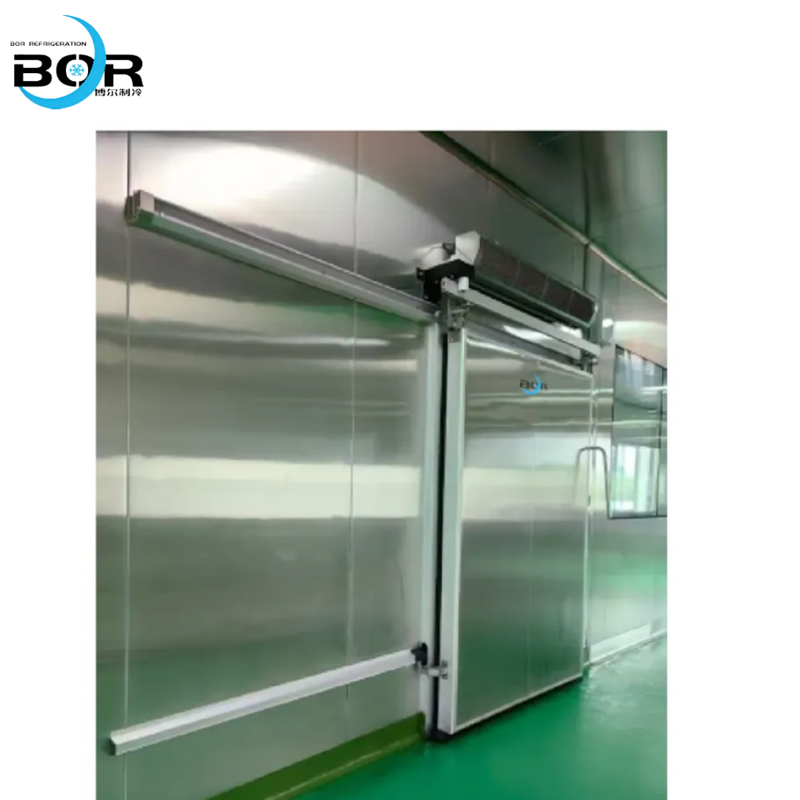

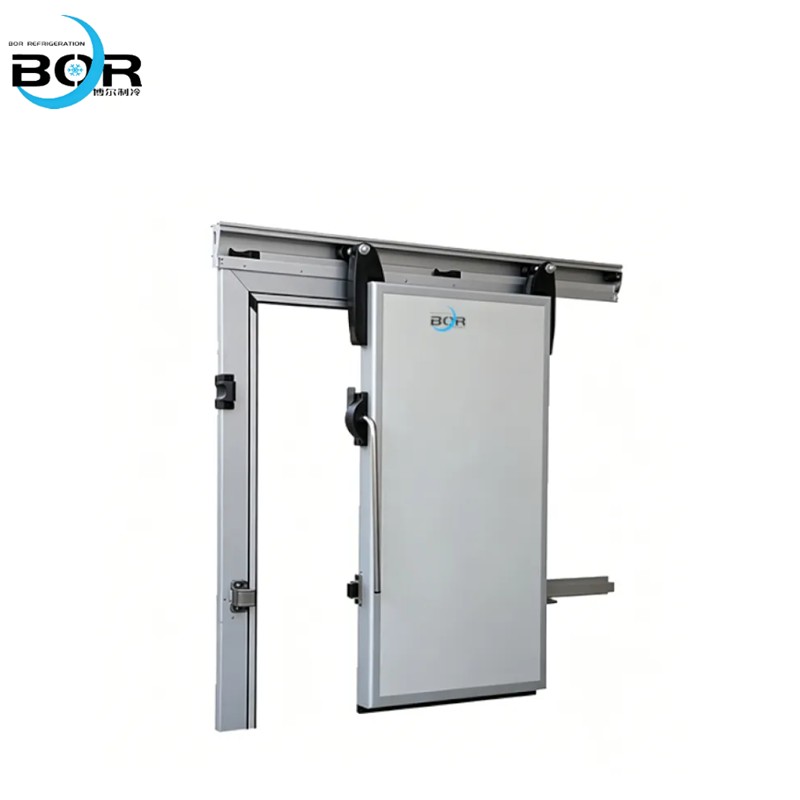

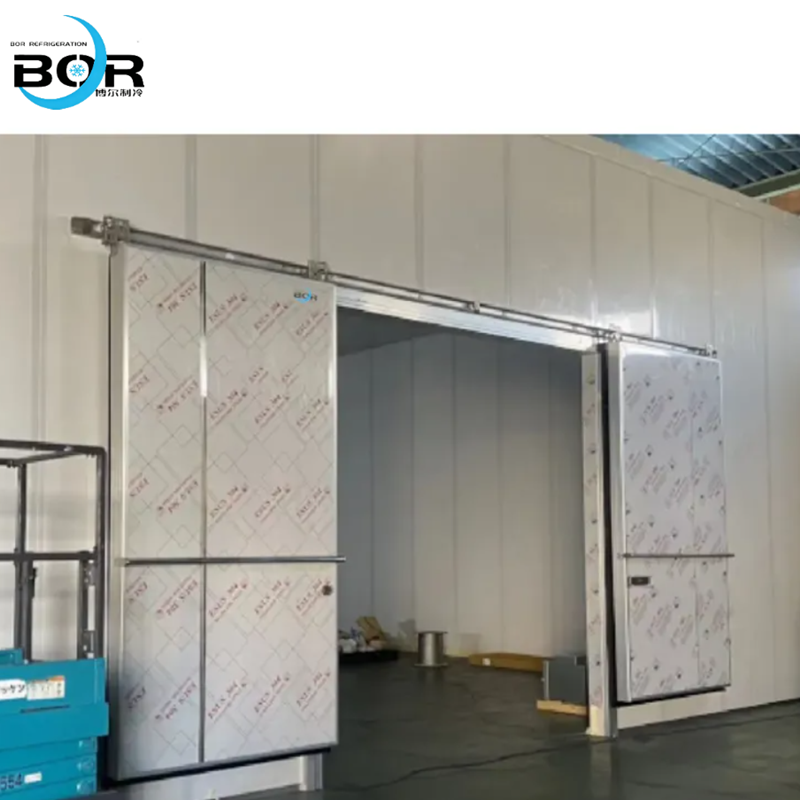

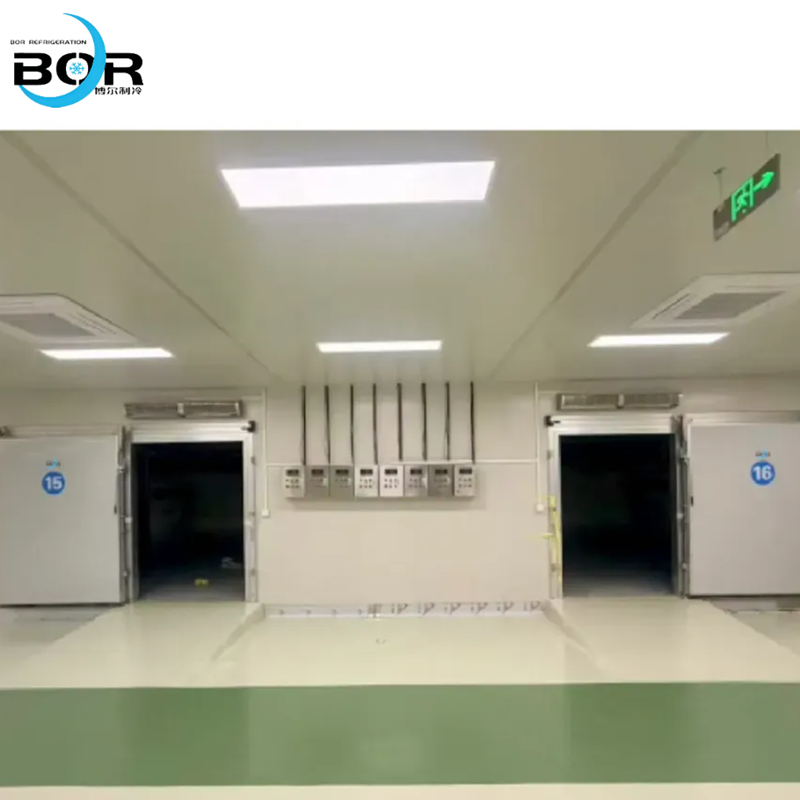

Manual sliding door

II. Product Introduction

The manual sliding door for cold storage (also known as a manual sliding gate) is a manually operated insulated door that opens by pushing and slides parallel to the wall. It achieves smooth operation through a track-and-pulley mechanism, requiring no additional access space and offering effortless operation. This door type is widely used in large-scale cold storage facilities, logistics cold storage units, workshop cold storage systems, and environments with frequent access requirements, perfectly suited for applications demanding convenient passage and space efficiency.

The door panel features a high-density polyurethane foam core that is tightly packed without voids, offering excellent thermal insulation performance and effectively preventing heat loss. Common thickness options include 100mm, 150mm, and 200mm, allowing flexible selection based on the specific temperature requirements of the cold storage facility.

The panel material is available in options such as 304 stainless steel, color-coated steel plate, and embossed aluminum plate, with customization available based on the cold storage's operating environment and specific requirements.

The sliding door dimensions are customizable, with standard door openings available in 1.2×2.1m,1.5×2.2m, and 1.8×2.4m sizes. For single-door configurations, the maximum recommended width is ≤2.0m; double-door units can be assembled for installation, meeting requirements for transporting large goods and equipment.

III. Product Features

1. Space-saving and convenient access: The sliding-opening mechanism occupies no space inside or outside the cold storage, allowing smooth and effortless operation without requiring significant force. It is ideal for scenarios involving frequent cargo handling and passage of large equipment, thereby enhancing cold storage operational efficiency.

2. Excellent sealing and insulation: The door body fits precisely with the door frame, complemented by a thick magnetic sealing strip that effectively reduces cold leakage, lowers energy consumption, and maintains stable storage temperature, making it suitable for various low-temperature cold storage applications.

3. Durability and Reliability: Featuring high-strength tracks and wear-resistant pulleys, it offers exceptional load-bearing capacity and smooth, lag-free sliding performance. The hardware components are treated with anti-corrosion and low-temperature protection, making them suitable for humid and low-temperature environments in cold storage facilities with a long service life.

4. Safe and reliable: An optional emergency opening device inside the storage compartment is available to prevent accidental locking by personnel; a manual limit device is installed to prevent excessive sliding of the door, ensuring safe and hassle-free operation.

5. Broad compatibility and flexible customization: Dimensions, panel materials, and thickness can be customized as required, making it suitable for preservation, refrigeration, and freezing applications in various industries such as food, pharmaceuticals, cold chain logistics, and industrial sectors, while balancing practicality and adaptability.
