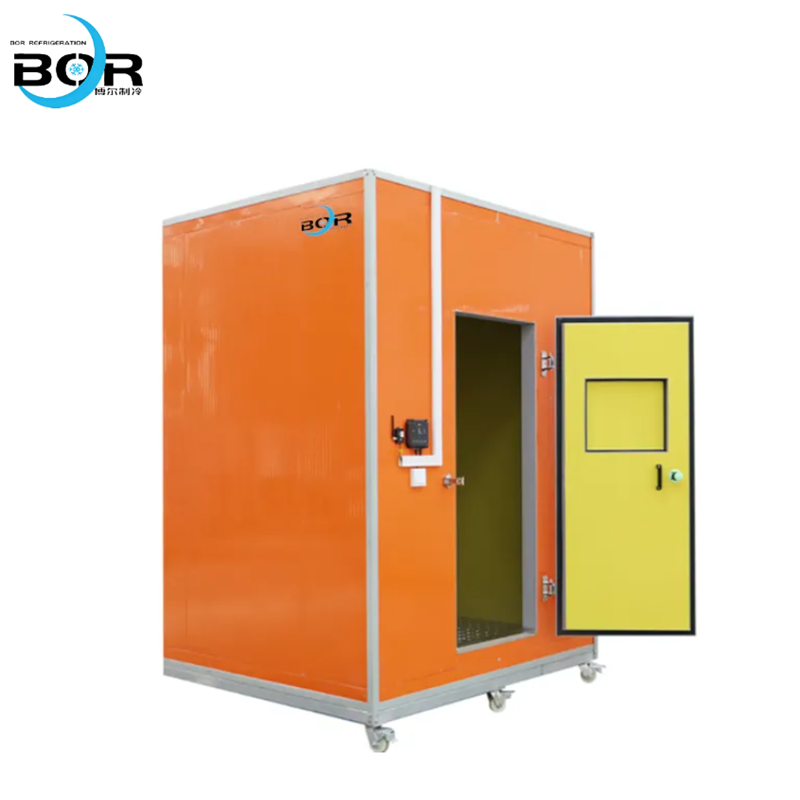

Standard Small Cold Storage Facility

Standard Small Cold Storage Facility


Standard dimensions: 2980*2880*2200

Applicable storage temperature range: 0–8°C / 32–46.4°F
Applicable voltage: 220V/50Hz/1Phase or 380V/50Hz/3Phase
Applicable scenarios: small retail stores, restaurant kitchens, community fresh food stores
Maximum storage capacity: 2 tons
Contact Us

Product Show

Ⅰ、Product Name: Standard Small Cold Storage Facility

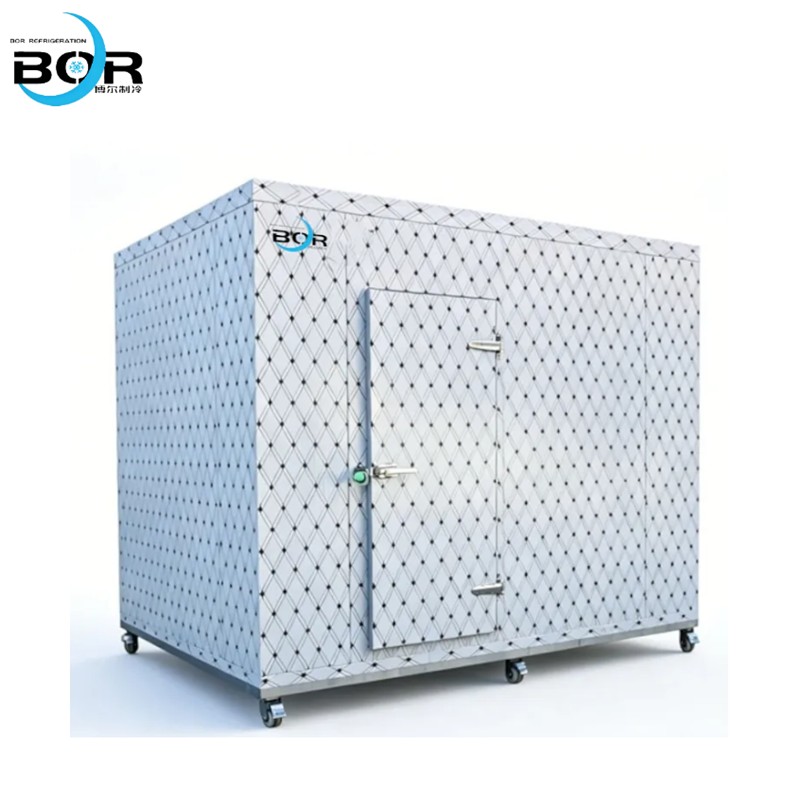

800x800(4

Standard dimensions: 2980*2880*2200

Applicable storage temperature range: 0–8°C / 32–46.4°F

Applicable voltage: 220V/50Hz/1Phase or 380V/50Hz/3Phase

Applicable scenarios: small retail stores, restaurant kitchens, community fresh food stores

Maximum storage capacity: 2 tons

Ⅱ、Standard Configuration List

Insulation System


Specification Parameters

quantity

unit

Roof panel

2980*960*100mm

3

block

Wall panel

2000*960*100mm

9

block

Wall panel

2000*380*100mm

2

block

Wall panel

2000*480*100mm

2

block

Base panel

2980*960*100mm

3

block

cold-storage door

800*1800mm

1

Fan

refrigeration system


condensing unit

BOR-03MCQP3A-C

1

Set

packaged air conditioner

G107B-401F

1

Set

electric cabinet

Precision Electric Control Box

1

Set

expansion valve

Danfoss expansion valve

1

Set

Accessories and supplementary materials


Structural Glue

20 bottles per box

1

Box

Balance Window

Model 200

1

Set

Cold storage light

10W dedicated LED cold storage unit

1

Set

Mobile Stand

Welded 40x40 square tubing

1

Set

Ⅲ、Product Features:

High cost-effectiveness with low investment requirements

1. High cost-effectiveness with low investment requirements

2. Simple and quick installation with short delivery time

3. Compact structure with minimal footprint

4. Accurate temperature control and energy-efficient performance

5. Simple to operate and easy to maintain

6. Portable and highly versatile

Ⅳ、Product packaging method and unit weight scale

Packaging method: Packaged in export-specific wooden crates.


Ⅴ、After-sales Service Guarantee

1、The entire unit has a 12-month warranty period,  the condenser and evaporator fan motors have an 18-month warranty period.

2、24-hour online service

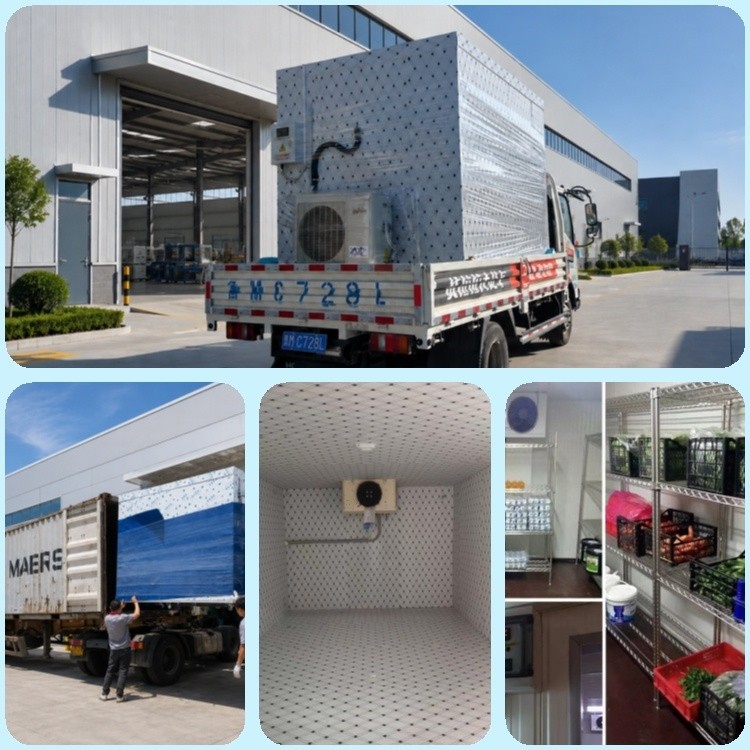

完 拼图 750X750 365kb
