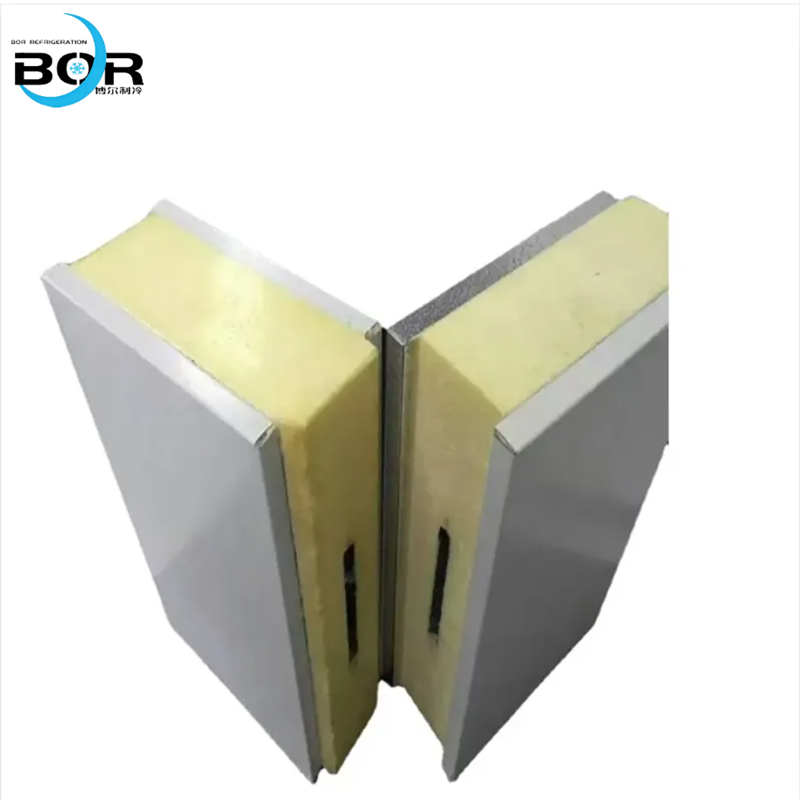

Ⅰ、Product Name: PU Panel

Ⅱ、product presentation ：

The cold storage PU board (polyurethane cold storage board) is a sandwich composite panel fabricated by high-pressure foaming and high-temperature curing of upper and lower metal surfaces (such as color-coated steel plates or stainless steel plates) with a rigid polyurethane (PU) foam core. It has become the mainstream high-efficiency thermal insulation material in the cold chain industry.

1. Structural Composition:

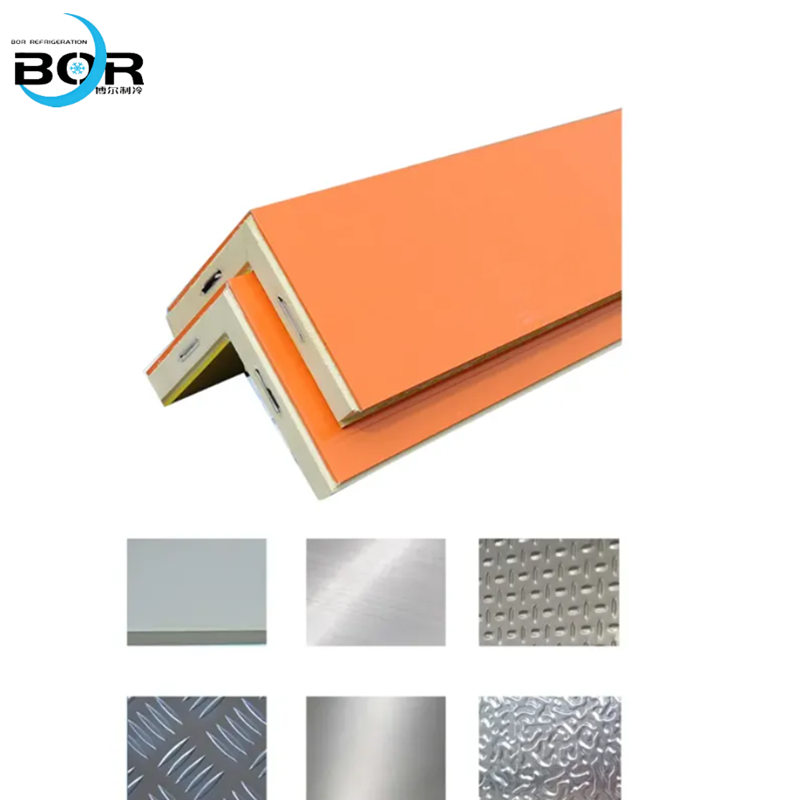

Surface layer: 0.326–1.0 mm color-coated steel plate / stainless steel plate / embossed aluminum plate, corrosion-resistant and easy to clean

Core material: High-density rigid polyurethane foam (PUR), serving as the thermal insulation core layer.

Interface: Eccentric hook + tongue-and-groove joint with sealing to prevent cold bridges.

2. Common specifications:

Thickness: 50/75/100/150/200 mm

Width: 960 mm (customizable); Length: ≤12 m (customizable).

Density: 38–42 kg/m³

III. Product Features:

1. Excellent insulation for high energy efficiency

With a thermal conductivity as low as 0.022–0.024 W/(m·K), its insulation performance is 2–3 times that of EPS/XPS.The obturator hole ratio is ≥90%, effectively blocking air convection and minimizing heat loss, achieving over 30% energy savings compared to traditional panels.

2、 Lightweight yet high-strength, with a stable structure

With a density of only 30–50 kg/m³, it reduces structural loads and is ideal for modular construction.With a compressive strength of ≥150 kPa, it can withstand a load of 3 tons/m², offering excellent resistance to bending and deformation, making it suitable for large-scale cold storage facilities.

3、 Waterproof and moisture-resistant, effectively preventing condensation

The obturator structure has a water absorption rate of <3%, exhibiting almost no water absorption and maintaining its thermal insulation performance even in humid environments.

Sealed joint construction eliminates cold bridges, preventing condensation and water leakage even under significant temperature differences between the interior and exterior of the storage facility.

4. Fire-resistant and flame-retardant, safe and reliable

With flame retardants added, it achieves B2-grade flame resistance, self-extinguishes when removed from fire, and does not spread flames.

Suitable for scenarios with high safety requirements such as pharmaceuticals and food.

5、Quick installation with a short construction period

Modular prefabrication with concave-convex grooves and eccentric hooks enables rapid assembly, eliminating on-site foaming and increasing installation efficiency by 50%.

The dimensions are highly adaptable, allowing direct use as wall panels, ceiling panels, or partitions with zero maintenance requirements.

6、Durable and hygienic, with a long service life

Corrosion-resistant and aging-resistant, with a long service life.

Stainless steel / color-coated steel plate features easy cleaning and antibacterial properties, complying with food-grade and pharmaceutical hygiene standards.

7、Environmentally friendly and non-toxic, with wide applications
