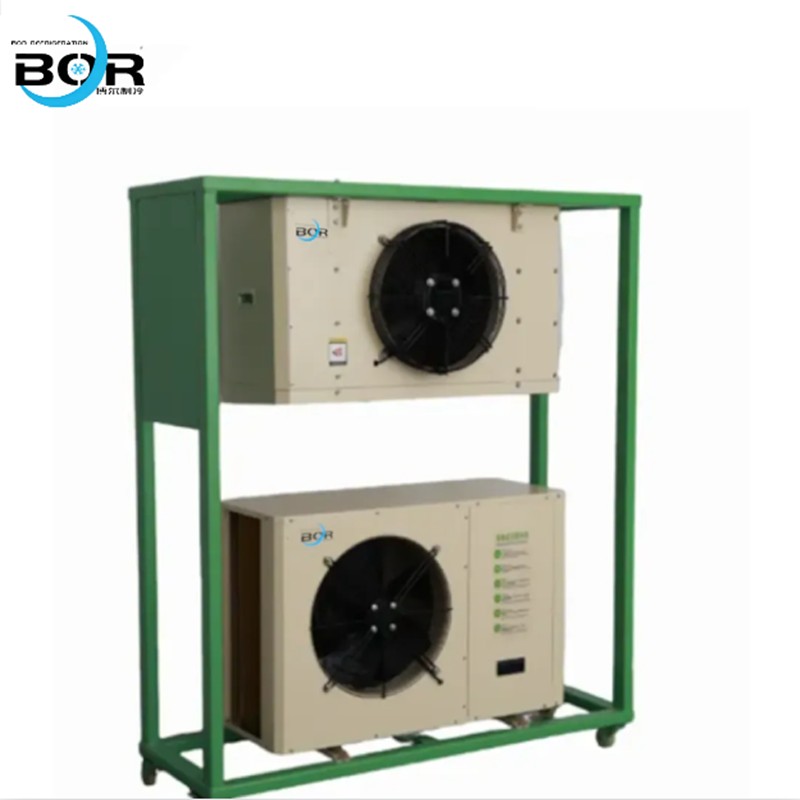

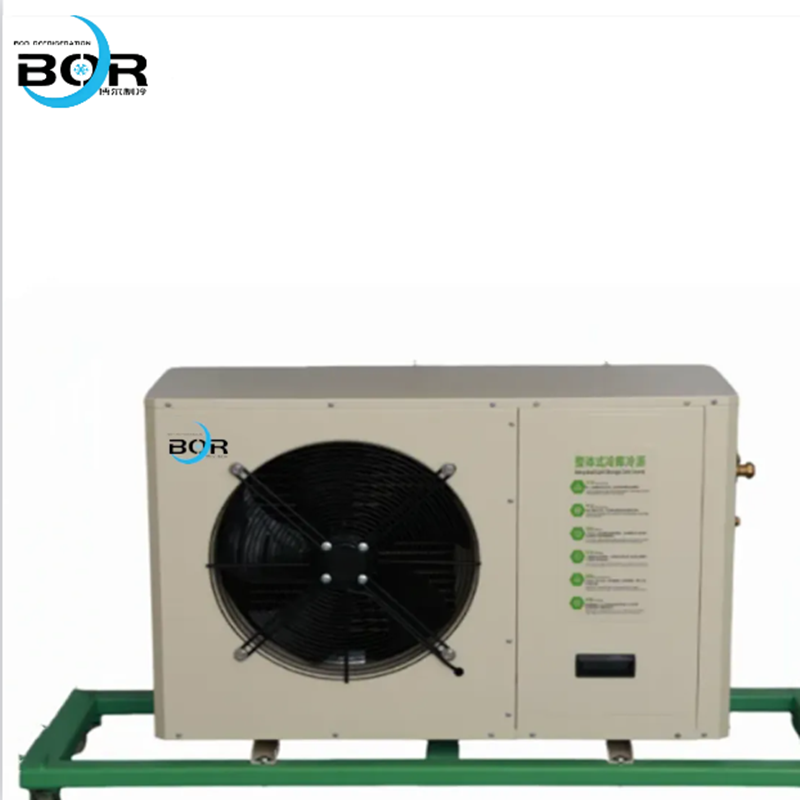

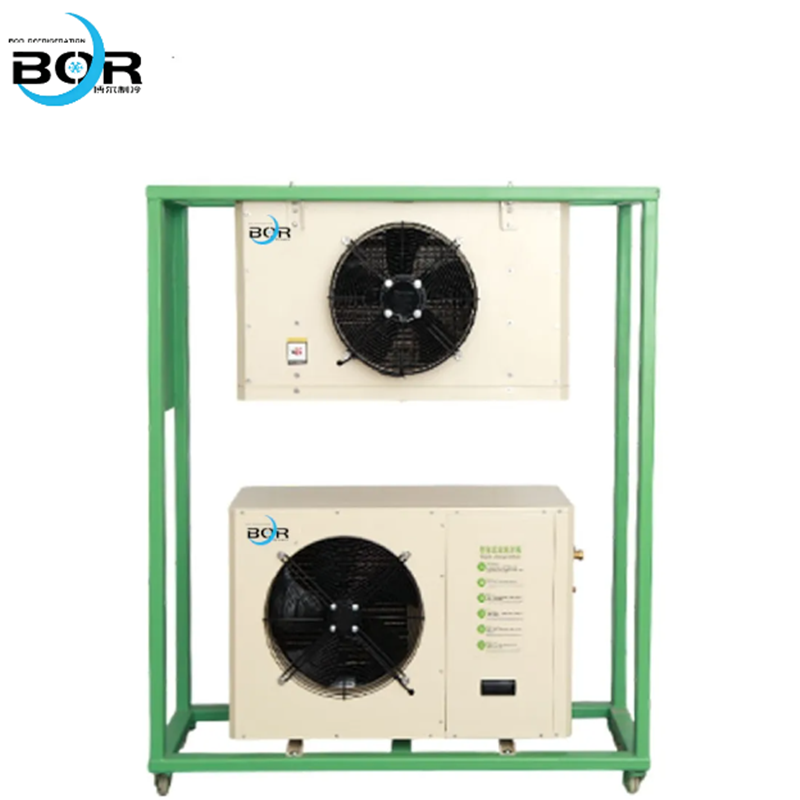

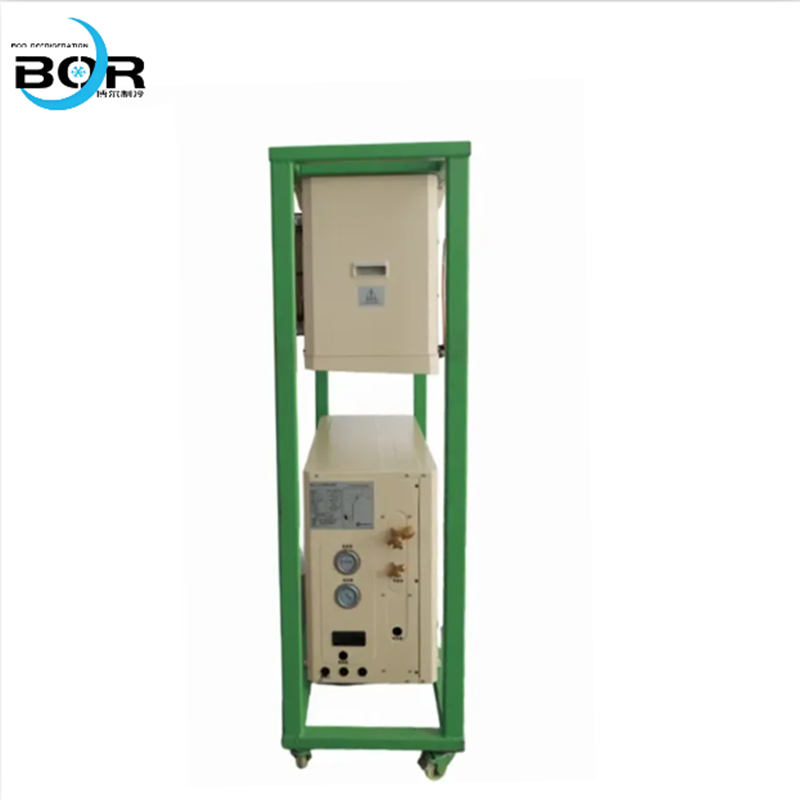

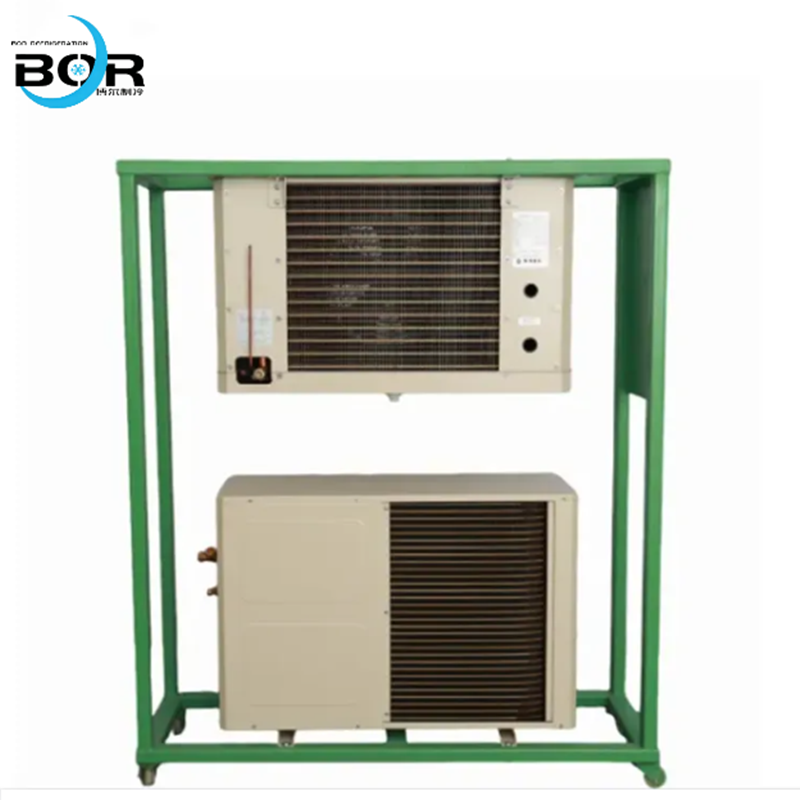

I. Product Name: Integrated Cold Storage Cold Source

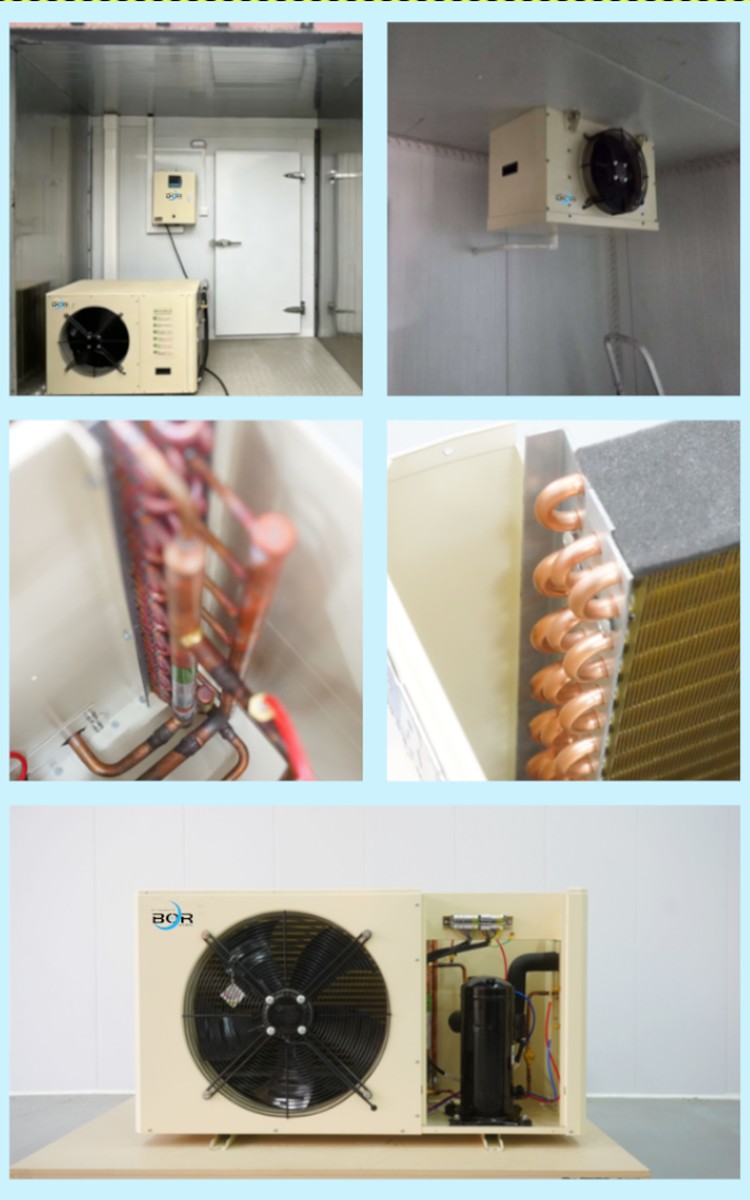

The integrated cold storage cooling system is a highly integrated, standardized refrigeration solution. Its core lies in the precise matching, comprehensive debugging, and performance calibration of key refrigeration components—including condensing units, air cooler evaporators, expansion valves, and control systems—before factory delivery, resulting in a complete, ready-to-use refrigeration unit. Compared to traditional decentralized refrigeration systems, its most significant advantage is its high degree of standardization, eliminating the need for complex on-site component assembly, matching, and debugging. This substantially reduces on-site installation complexity, shortens installation timelines, and effectively prevents issues such as low refrigeration efficiency, high energy consumption, and frequent malfunctions caused by improper on-site configuration, thereby providing more stable and reliable cooling support for cold storage operations.

Ⅱ、Product Features and Advantages:

1. The integrated cold storage system adopts a unified cooling source design concept, ensuring high system compatibility and stable operation;

Remote IoT Cold Storage Control Box

2. Rational temperature differential design reduces frost formation on the cold air blower and minimizes food moisture loss;

3. Dual condenser design ensures reliable cooling for cold storage in summer;

4. Standardly equipped with a condensing pressure control device to ensure safe operation during winter;

5. The cold air blower features a compact design with small-diameter, densely arranged tubes, resulting in a reduced tube volume and lower refrigerant charge requirement.

6. The expansion valve and solenoid valve are integrated into the cold air blower, requiring only connection of the high-pressure liquid supply pipe and return air pipe on-site, significantly reducing installation costs.

7. IoT-based remote cold storage control system provides clear and intuitive visibility of cold storage operational data;

8. Fluorine-based defrosting design ensures rapid defrosting, low power consumption, and exhaust pressure within permissible limits;

9. Cold storage offers large storage capacity, energy efficiency, reduced consumption, and low investment requirements.

Ⅲ、3HP Integrated Cold Storage Cold Source Medium-Temperature Technical Specifications Parameter Table

Applicable temperature range: -10 to +5°C

Voltage: 380V/50Hz/3-phase

Refrigerant: R404A / R507A

Compressor: Copeland hermetic scroll compressor

Defrosting method: Electric heating defrosting
