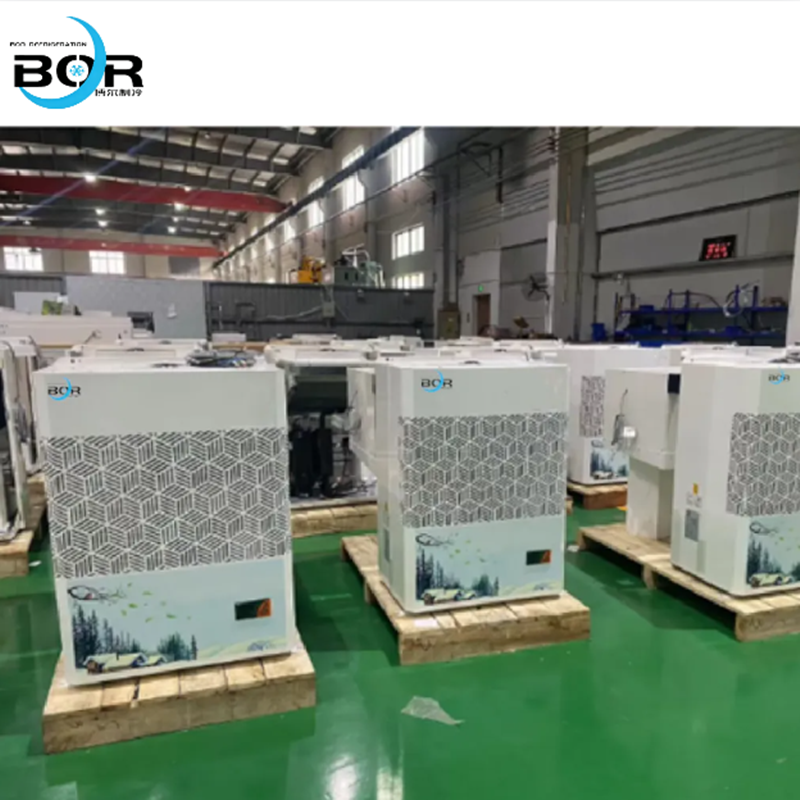

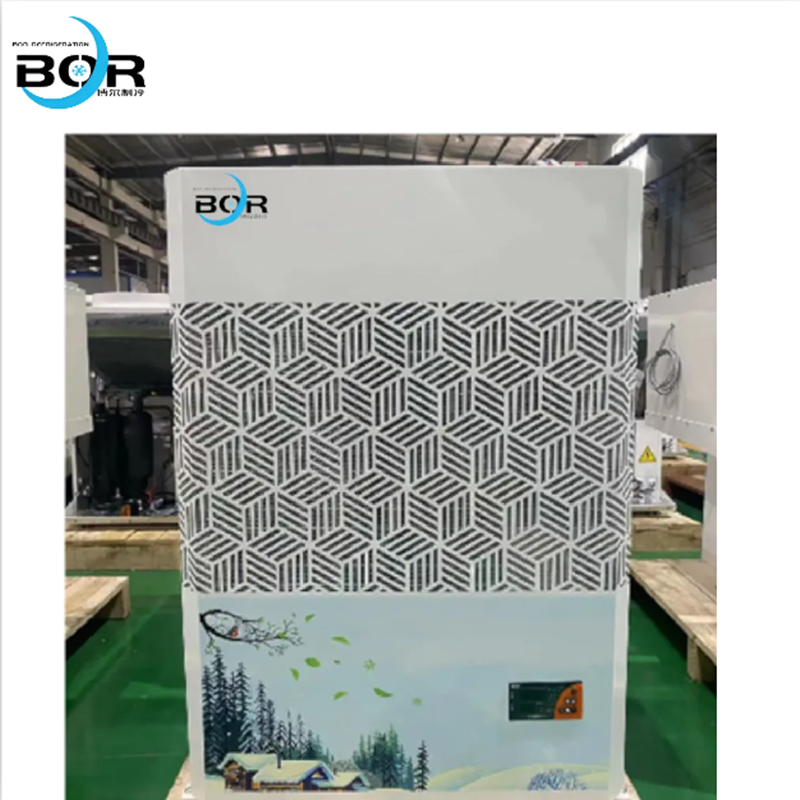

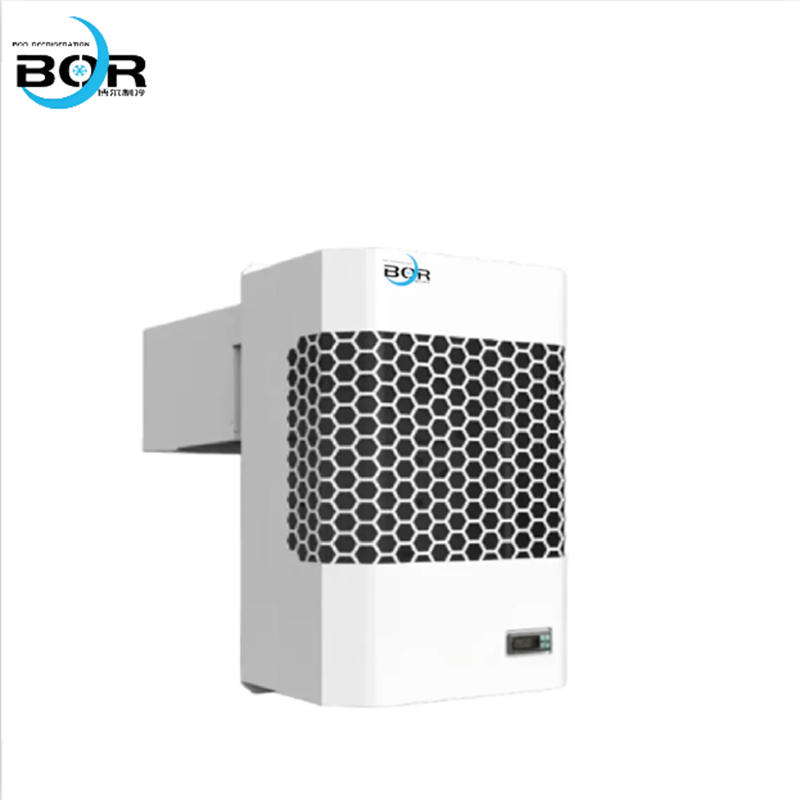

Ⅰ、Product Name: All-in-One Machine

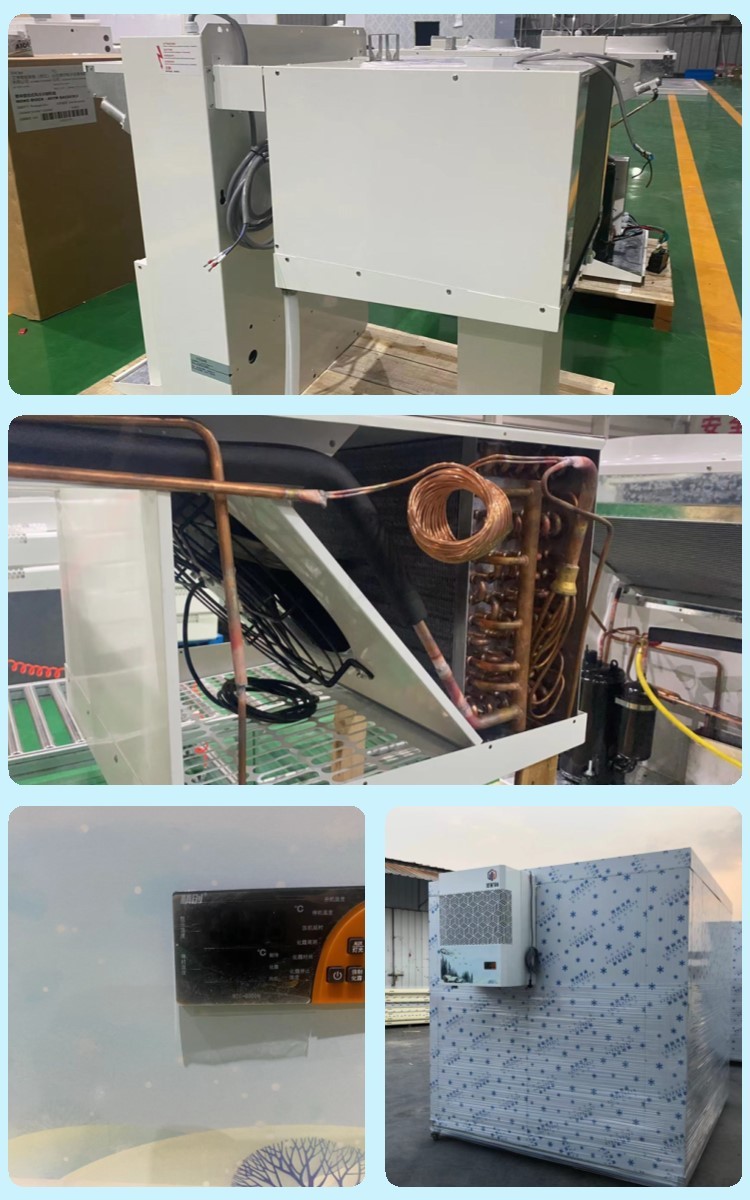

The integrated cold storage unit (also known as a monoblock refrigeration system) combines the compressor, condenser, evaporator, throttling valve, and electrical control system into a single unit manufactured in-house. Upon installation and power connection, it is ready for immediate use, featuring no welding, no commissioning, space-saving design, and low failure rates.

Ⅱ、Product Features and Advantages:

1. Minimalist installation: Prefabricated and factory-tested, completed on-site within 2–4 hours—no welding required, no refrigerant addition needed, and no specialized testing involved.

2. Low failure rate: Standardized welding processes in the factory reduce the risk of fluorocarbon leakage by approximately 80%; shorter pipelines and fewer joints result in fewer failure points.

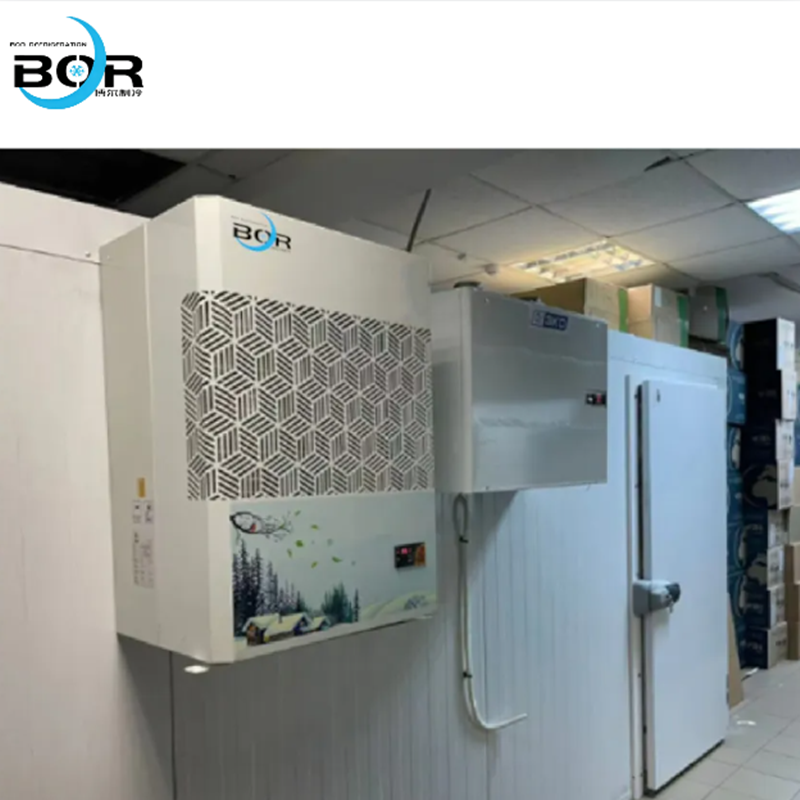

3. Space-saving design: Compact integration eliminates the need for a dedicated server room, allowing wall-mounted or ceiling-mounted installation without occupying additional space.

4. Energy-efficient and high-performance: Short piping length minimizes cold loss.

5. Simple maintenance: Modular design with centralized components facilitates daily cleaning and part replacement; intelligent fault alarm system.

6. Precise temperature control: ±0.5°C precision temperature regulation with intelligent defrosting, ensuring stable warehouse temperature and minimizing cargo loss.

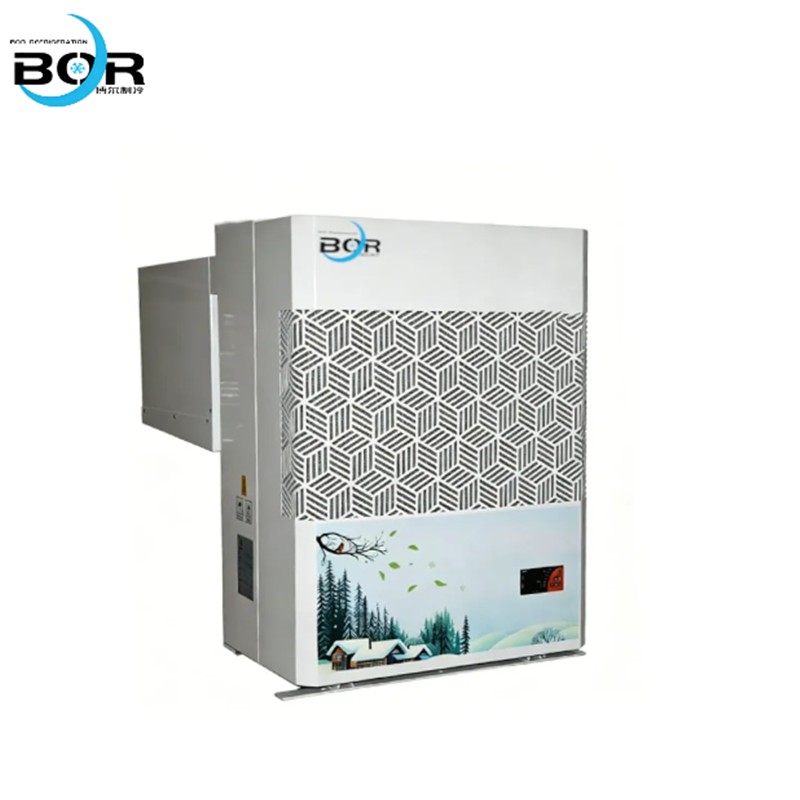

Ⅲ、1.2HP Wall-Mounted All-in-One Machine Low-Temperature Technical Specifications Table

Model: BOR-LF012P1GC

Voltage: 230V/50Hz/1-phase

Refrigerant: R404A

Defrosting method: Thermal fluorine defrosting
