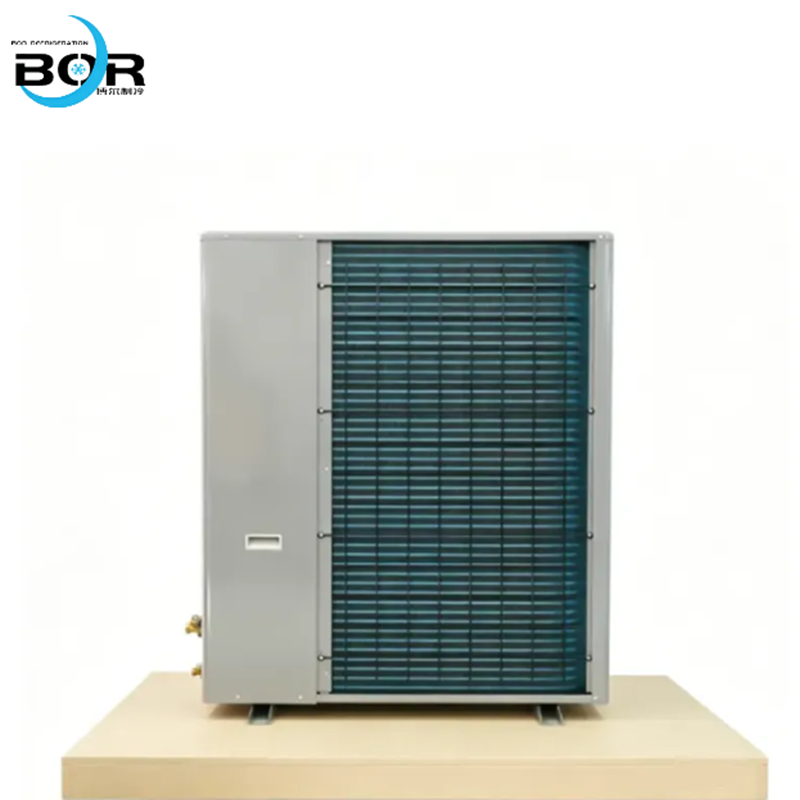

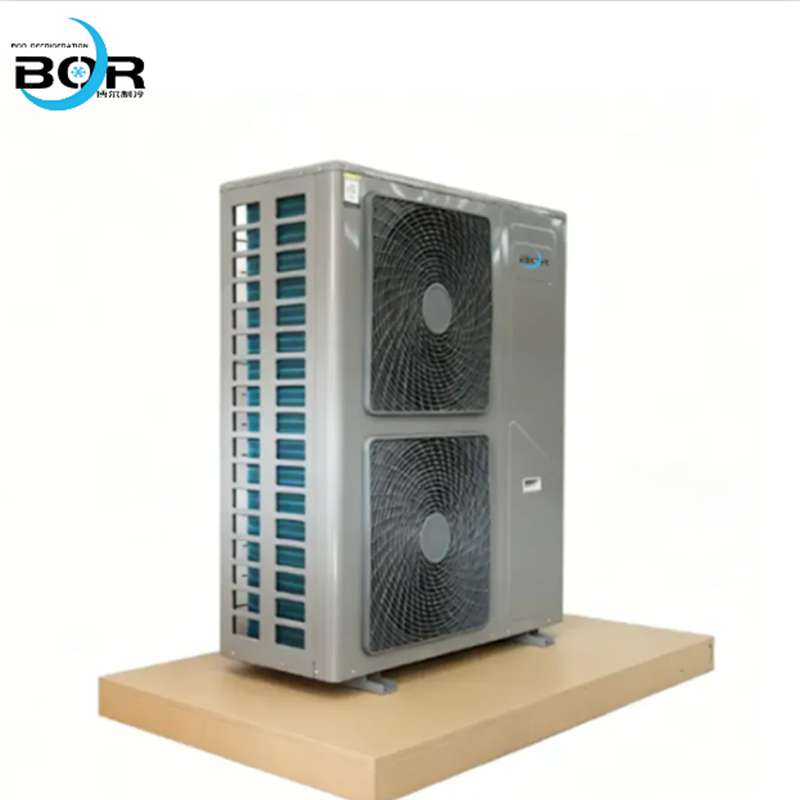

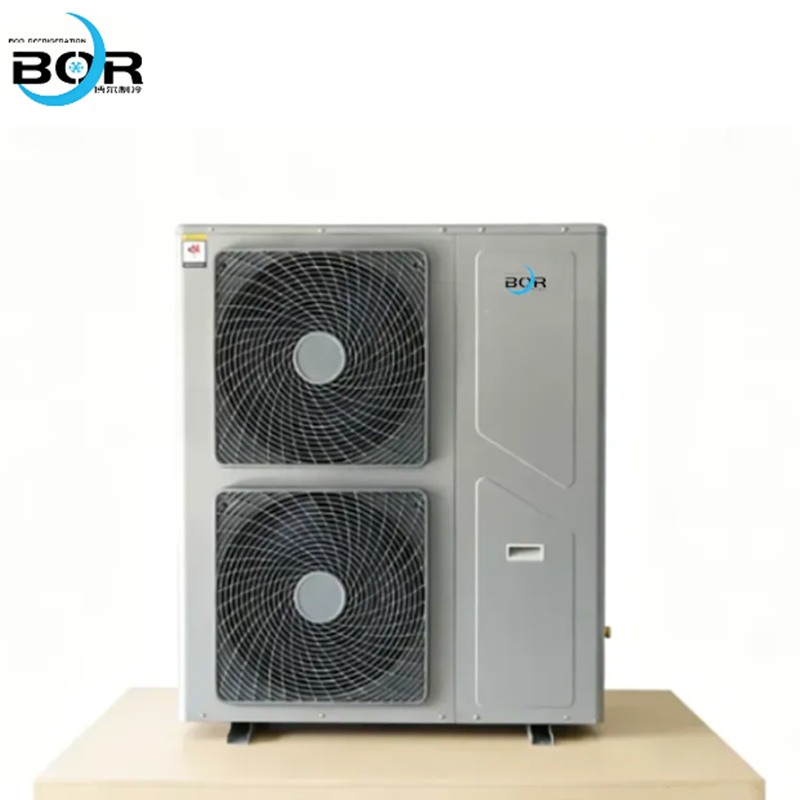

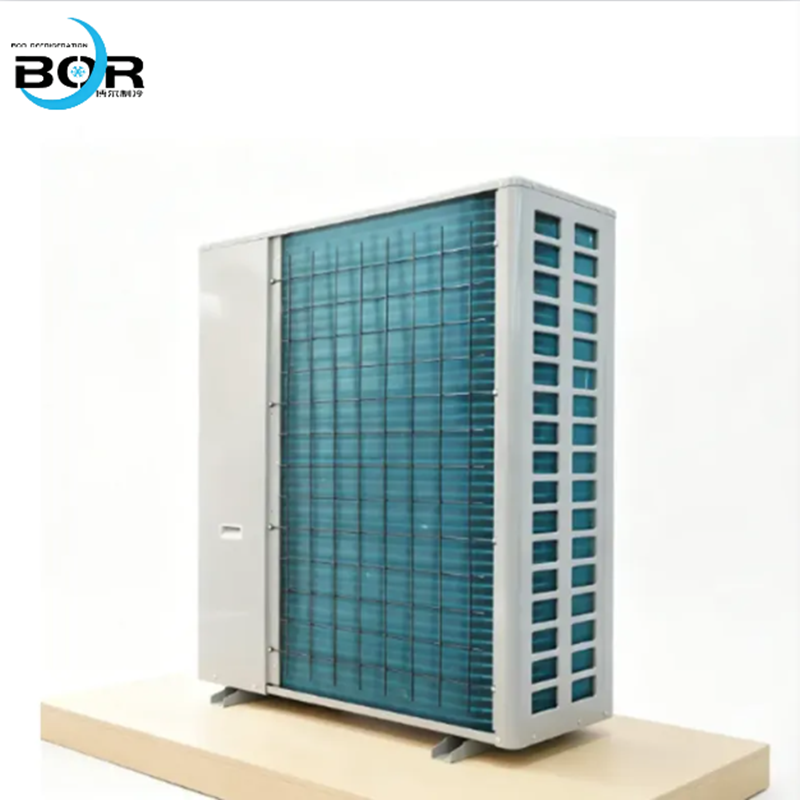

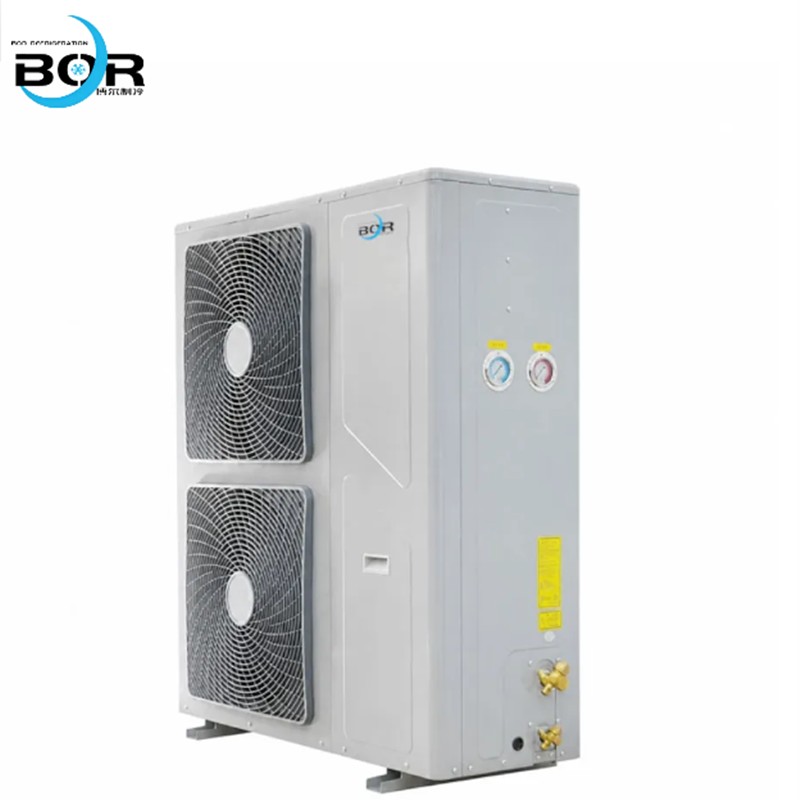

I. Product Name: Spiral Condenser Unit

The scroll condensing unit is an integrated refrigeration system featuring a fully enclosed scroll compressor at its core, incorporating the compressor, condenser, fan, electrical control, and protection modules. It offers high efficiency, energy savings, low noise, stable performance, compact size, and easy installation, making it the mainstream refrigeration equipment for small-to-medium cold storage facilities, cold chain logistics, and commercial food storage applications.

Ⅱ、Product Features and Advantages:

1. Highly efficient and energy-saving: With a volumetric efficiency of over 90%, it consumes approximately 30% less electricity than traditional piston engines and delivers even higher energy efficiency under partial load conditions.

2. Stable and reliable: Featuring a dual flexible vortex design, it withstands liquid impact and impurities, with low failure rates and long service life.

3. Low-noise operation: Operating noise ≤65 dB with minimal vibration, making it suitable for noise-sensitive environments such as residential areas, shopping malls, and hospitals.

4. Compact and easy to install: Featuring a box-type structure with compact size and lightweight design, it can be mounted wall-mounted, floor-mounted, or on the roof without requiring a dedicated server room, resulting in a short installation cycle.

5. Intelligent Protection: Features built-in protection against high/low voltage, overload, overheating, phase loss, and delayed startup, with support for remote monitoring and fault alarms.

6. Simple maintenance: With no complex or wear-prone components, daily maintenance costs are low, reducing maintenance expenses by approximately 80% compared to screw drives.

Ⅲ、Copeland 5HP Medium-Temperature Technology Specification Parameter Table

Model: BOR-CWFC5-2

Applicable temperature range: -10 to +5°C

Voltage: 380V/50Hz/3-phase

Refrigerant: R404A / R507A

Box type: Box-type side air outlet

External dimensions: 1060*410*1270 mm
